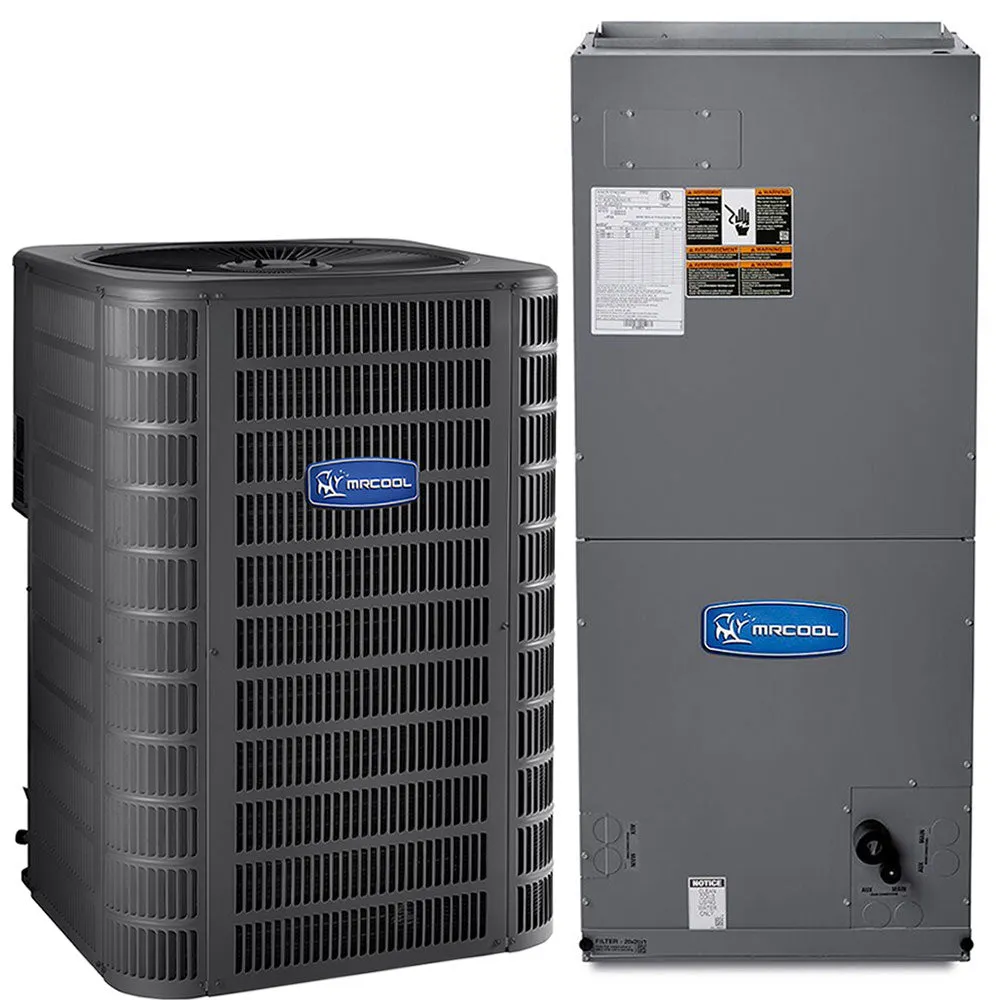

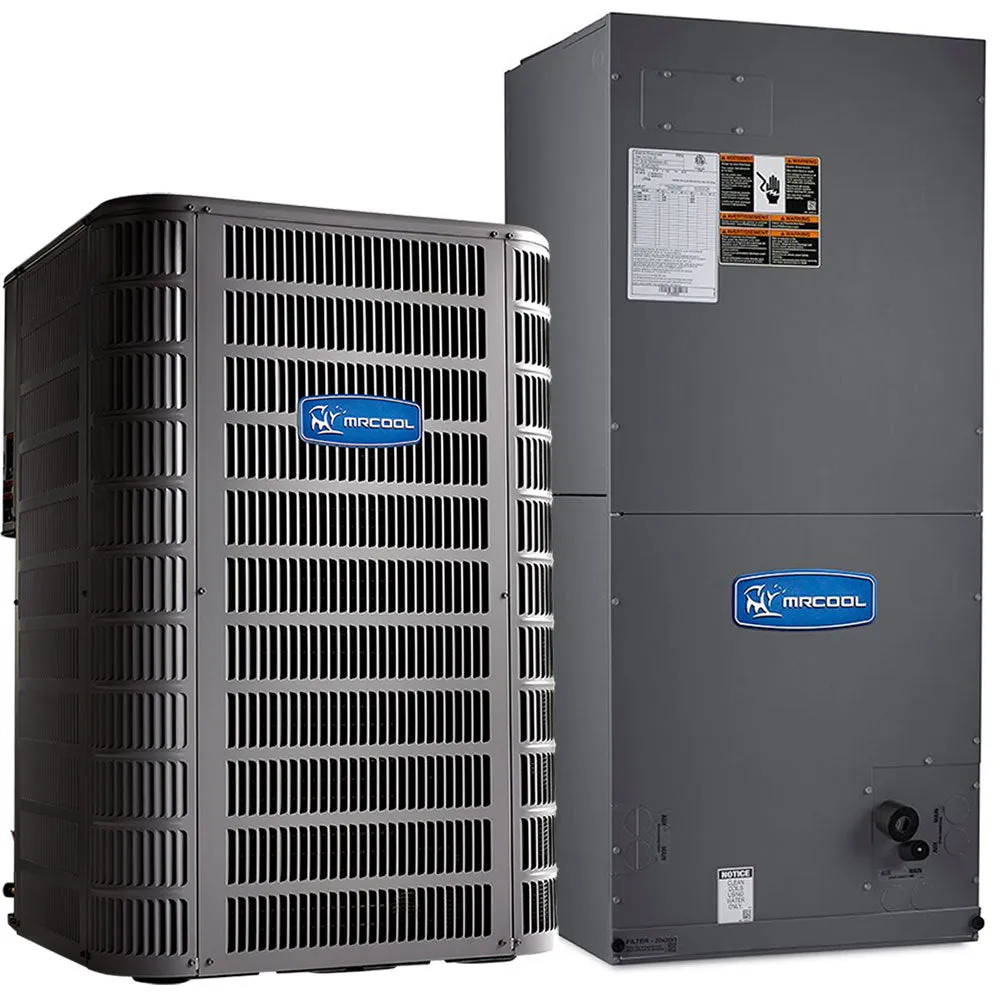

2 Ton 16 SEER Multi Speed MRCOOL® Signature Central Heat Pump Split System - Multiposition
Elevate your home comfort with the 2 Ton 16 SEER Multi Speed MrCool Signature Central Heat Pump Split System - Multiposition. Precision meets reliability in this outstanding heat pump split system, designed to deliver efficient heating and cooling for year-round comfort.
Crafted as part of the MrCool Signature Series, this unit blends affordability with performance, ensuring that you get the best value for your investment. Experience the perfect indoor climate without breaking the bank.
The exterior of this unit is not just about aesthetics—it's a modern grey steel louvered construction that serves a dual purpose of looking sleek and providing robust durability. The raised coil design not only catches the eye but also acts as an additional barrier, preventing outdoor debris from compromising performance. The polyester finish with baked-on paint ensures that this unit can withstand any weather conditions, no matter how extreme.
Internally, the 2 Ton 16 SEER Multi Speed MrCool Signature Heat Pump Central Split System boasts an aluminum blend coil that resists rust, contributing to the unit's longevity. Maintenance is made simple with 4-screw louvered panels, corner-mounted controls, and 45-degree offset valves, designed for hassle-free access when needed. The tube-and-fin coil design enhances efficiency, facilitating optimal heat transfer from the unit.
Why choose MrCool? The answer lies in the exceptional build quality and advanced features of this system. Designed to endure, this unit comes with a comprehensive, long-term warranty, offering peace of mind for years to come.
Upgrade your home's heating and cooling capabilities with the 2 Ton 16 SEER Multi Speed MrCool Signature Central Heat Pump Split System - Multiposition. Unleash the power of precision, reliability, and affordability in one superior package.

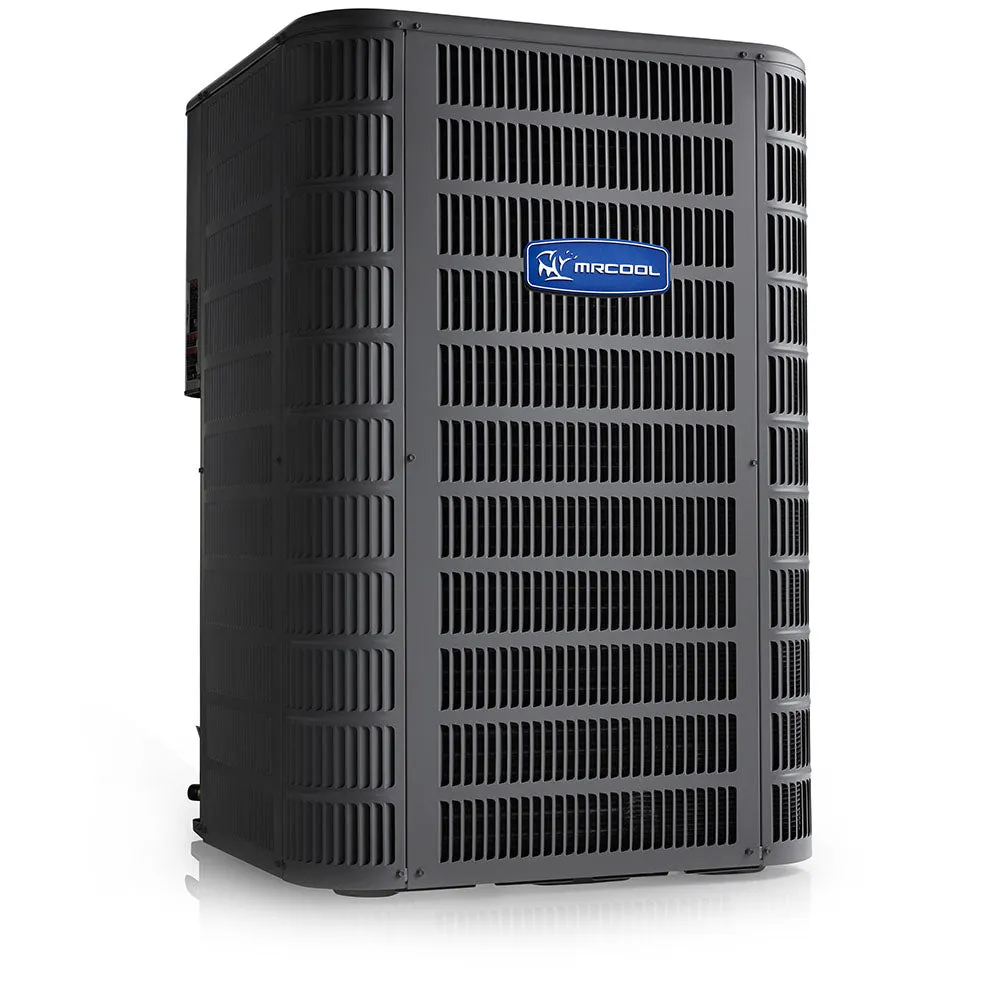

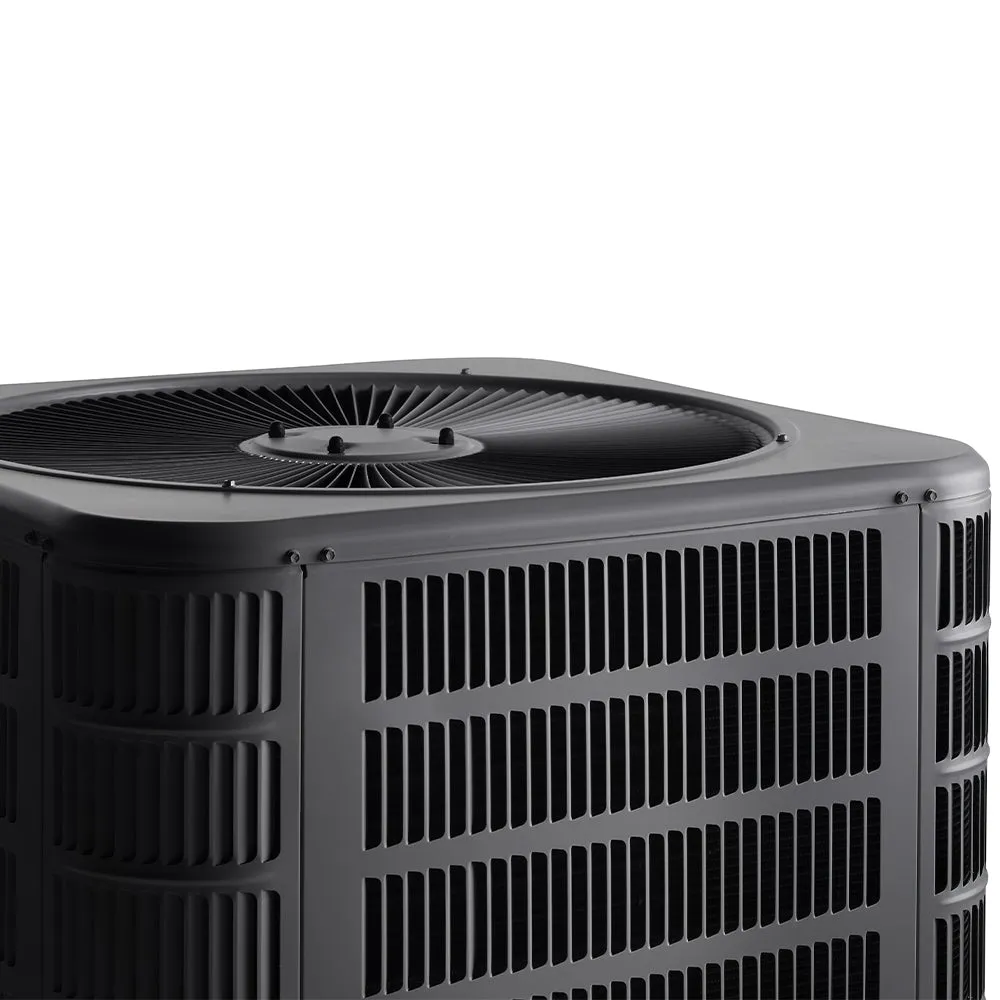

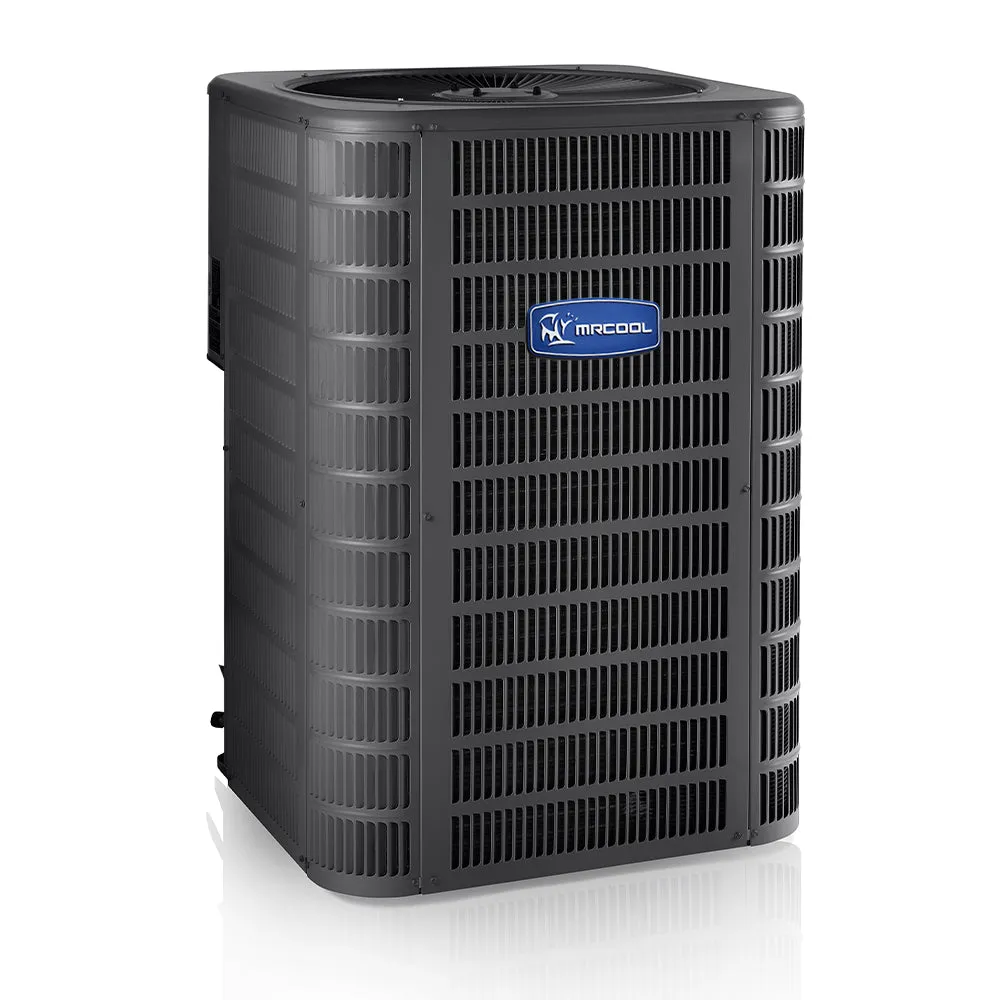

2 Ton 15 SEER MRCOOL® Signature Central Heat Pump Condenser - MHP15024A
The MRCOOL 15 SEER Heat Pump Split System works diligently to make your home a comfortable space. This product gives you total energy efficiency with it's enhanced tube-and-fin coil design, allowing you to get more bang for your buck. You can have peace-of-mind with this product due to its affordability, quality, efficiency, and comfort. Look no further for your family's next home central heating and air system.
Features:
- Louvered construction with baked polyester finish over galvanized steel to withstand bad weather
- Raised coil to prevent debris blockage
- CoolGuard advanced corrosion resistant coil
- 4-screw louver panels, corner-mounted controlsand 45-degree offset valves for easy service.
- Enhanced tube-and-fin coil design featuring high efficiency heat transfer technology
- Thread-on pressure switches for simple, quick replacement
- Charged for 15 feet of line set
- Heavy-duty compressor sound blanket forquiet operation
- Internally protected against high temperature motor overload conditions
- Ships with filter drier
- All units ETL and ETLC approved and AHRI Certified
- 10 year registered parts warranty

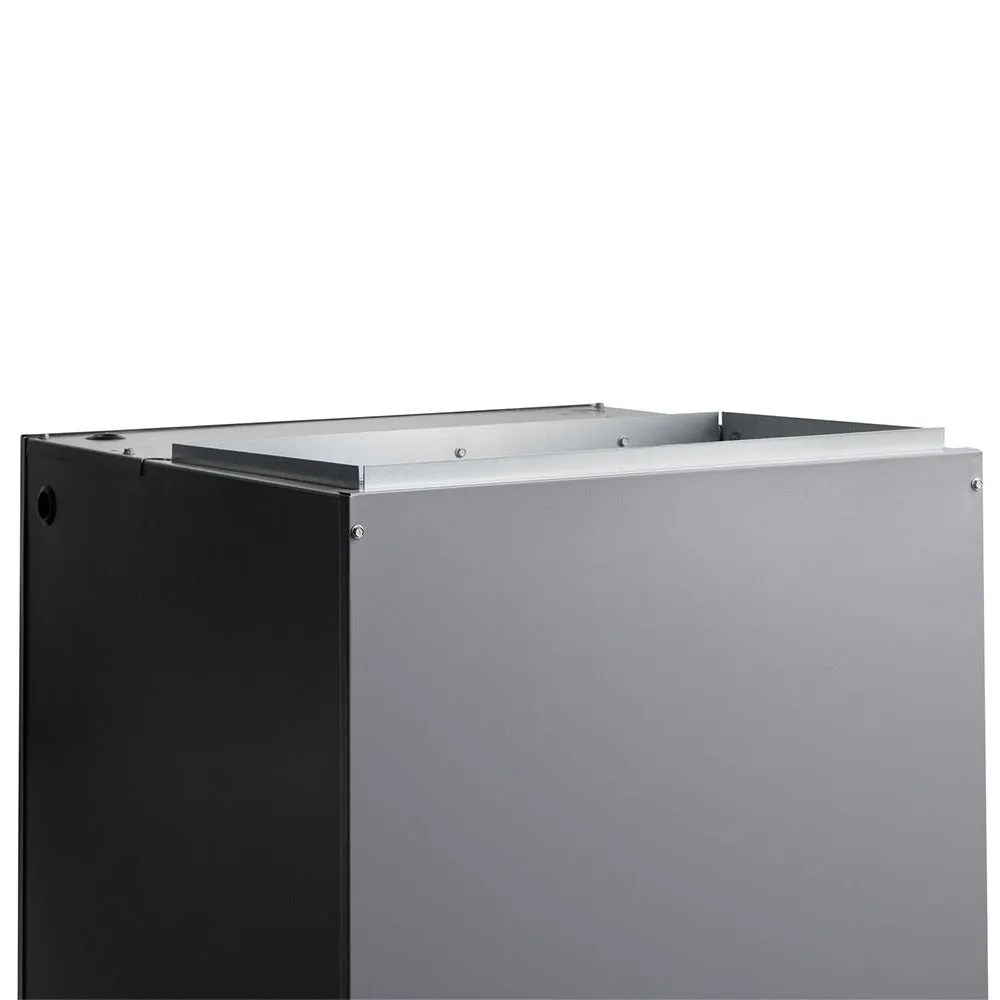

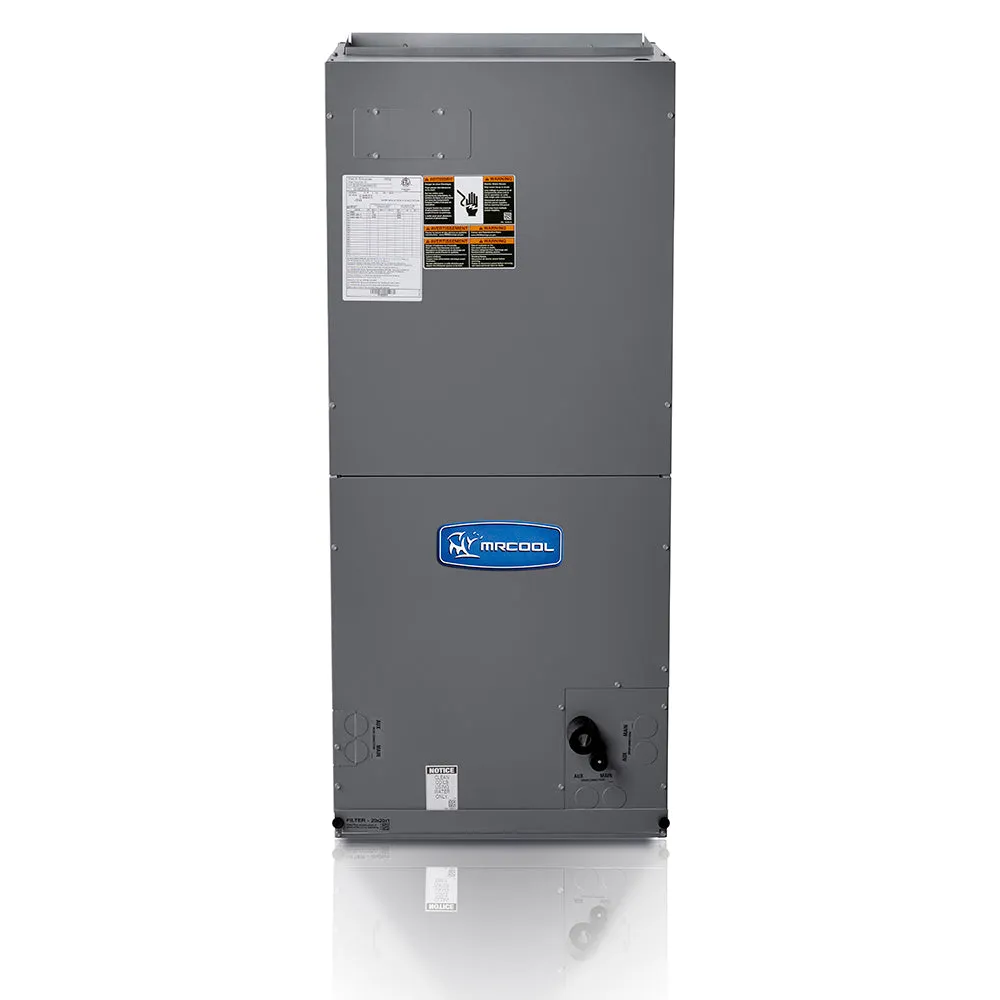

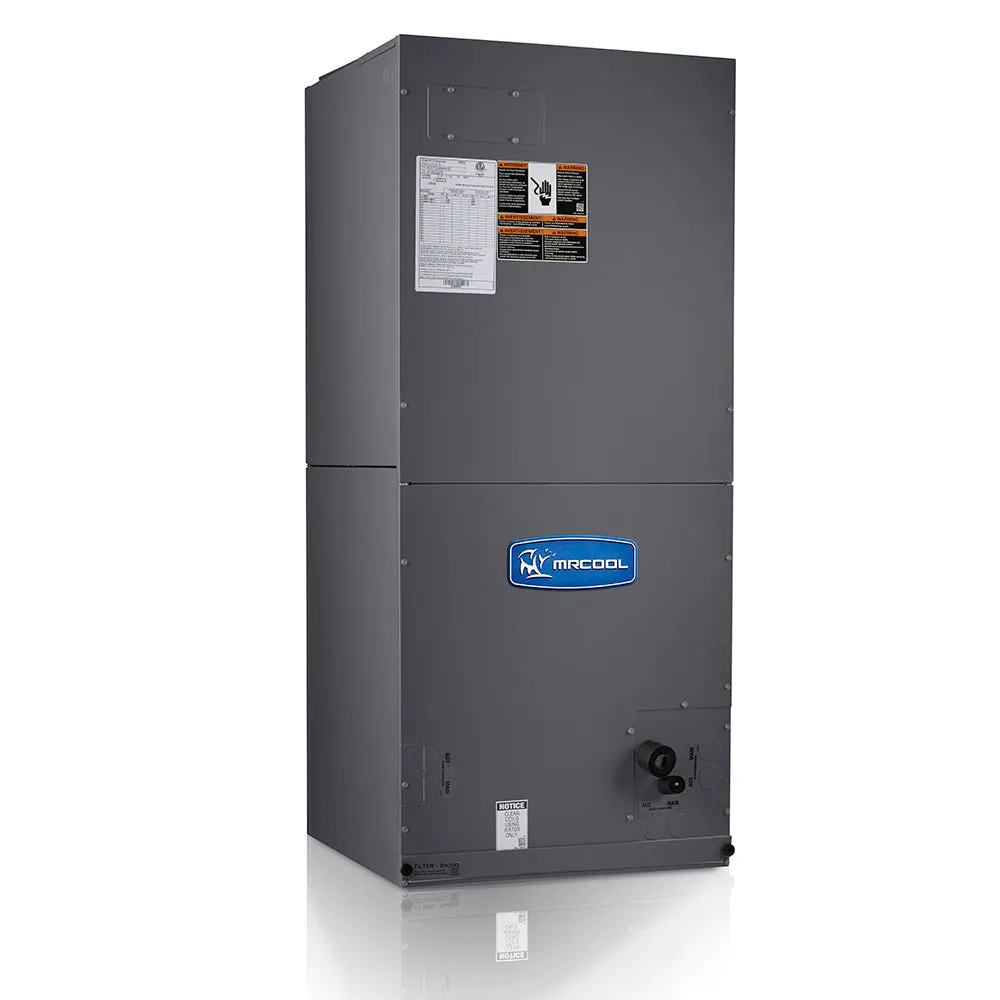

2.5 Ton Multi Speed MrCool Signature Central Air Handler - MAHM030ETA

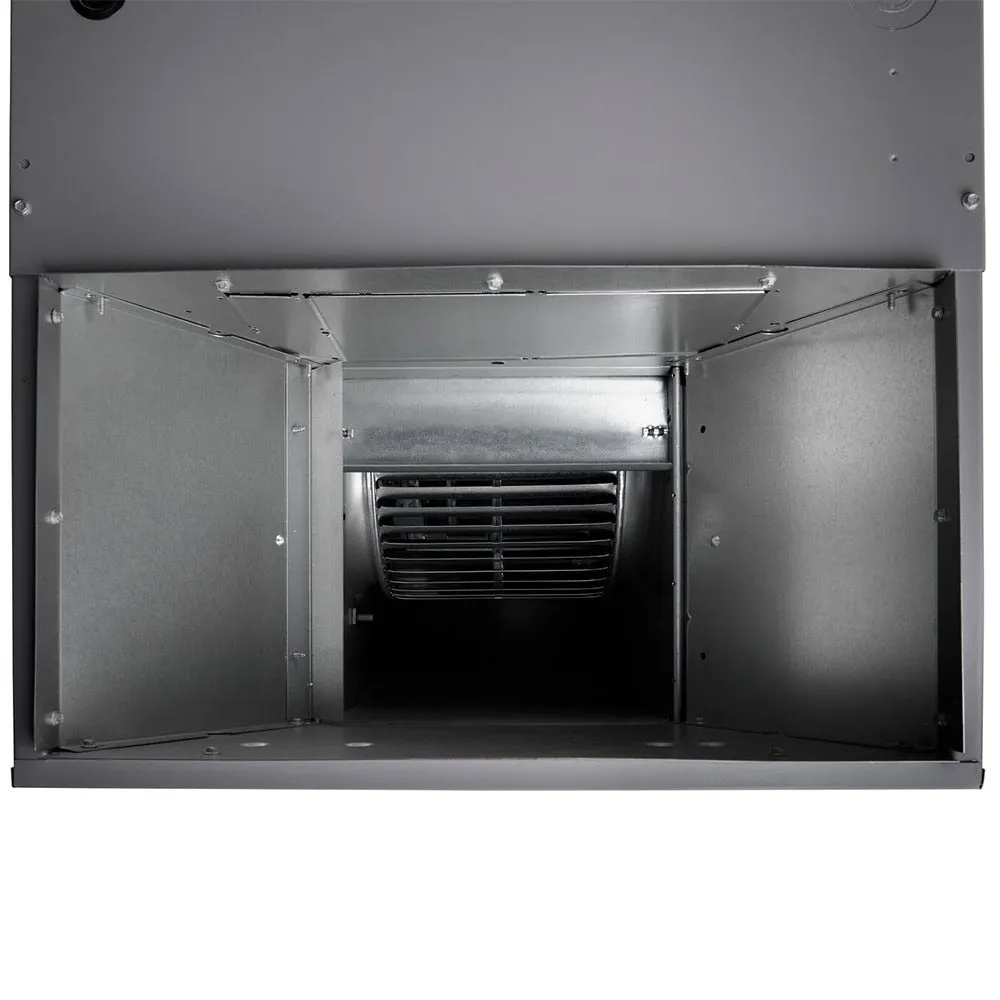

The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times. When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
Features:
- Smaller profile for closet applications
- Optional auxiliary heat kits available
- Baked polyester paint finished over galvanized steel for maximum duraility
- Antimicrobial treated drain pan to resist mold and mildew growth
- Factory tested for leakproof construction
- Foil faced insulation for enhanced indoor air quality
- CoolGuard total corrosion protection technology designed coil
- Built-in indoor time delay for increased efficiency and comfort
- One piece design
- High-strength/heat resistant/corrosion resistance SMC drain pans
- Multi-position=Upflow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit)
- AHRI certified and ETL listed
Bundled System Specifications:
| BRAND | MRCOOL® |
| MODEL |
MHP1524MAHM30EA |
| UPC | 810512038992 |
| AHRI NUMBER | 204102272 |
| BUNDLE AVG COVERAGE AREA |
1,000 - 1,200 Sq Ft |
| BUNDLE COOLING CAPACITY |
2 Ton |
| BUNDLE COOLING EFFICIENCY |
16 SEER |
| EER | 13 |
| HEAT PUMP EFFICIENCY (HSPF) | 8.5 |
| SERIES | Signature |
| REGION COMPATIBILITY | North |
| CALIFORNIA RESIDENTS |
Prop 65 Warning |
Condenser Specifications:
| BRAND | MRCOOL® |
| MODEL |
MHP15024A |
| SERIES |
Signature Split Heat Pump |
| UPC |
810512031016 |
| SEER |
15 |
| MAX SEER |
14-15 |
| EER | 11.5 |
| COP 47 |
3.4 |
| COP 47 PART LOAD |
2.4 |
| HSPF | 8.2-8.5 |
| CFM | 850-875 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) |
23400-24000 |
| HEATING CAPACITY (BTU) |
21000-21600 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| STAGE | Single |
| MAX FUSE BREAKER (A) |
30 |
| MIN CIRCUIT AMPACITY (A) |
17.9 |
| COLOR | Gray |
| COLOR FAMILY |
Gray |
| RATED LOAD |
13.5 |
| MAX COVERAGE AREA |
1000 |
| REFRIGERANT TYPE |
R-410A |
| REFRIGERANT VOLUME (OZ) |
94 |
| DECIBEL RATING (DBA) |
76 |
| INVERTER | No |
| MIN AMBIENT COOL (F) |
55 |
| LINESET INCLUDED |
No |
| LINE SET LENGTH |
15, 25, 35, 50 |
| MAX LINESET LENGTH (FT) |
50 |
| LINESET FITTING TYPE |
Sweat |
| LIQUID LINE SIZE |
3/8 |
| SUCTION LINE SIZE |
3/4 |
| COMPRESSOR MOTOR TYPE |
Scroll |
| CONDENSER FAN MOTOR TYPE |
Direct Drive |
| CONDENSER FAN MOTOR HP |
1/6 |
| CONDENSER FAN MOTOR RPM |
825 |
| METERING DEVICE |
TXV |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| AUXILIARY HEATER SIZES |
7.5kw, 10kw |
| UL RECOGNIZED |
No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
No |
| LEED CERTIFIED |
No |
| ENERGY STAR COMPLIANT |
No |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
Registered 10 Year Parts Warranty |
| BASE WARRANTY |
5 Year Parts Warranty |
| REGISTERED PARTS WARRANTY |
Registered 10 Year Parts Warranty |
| BASE PARTS WARRANTY |
5 Year Parts Warranty |
| HAS BATTERIES |
No |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
No |
| NET DEPTH (IN) |
28.25 |
| NET HEIGHT (IN) |
37.00 |
| NET WIDTH (IN) |
28.25 |
| NET WEIGHT (LBS) |
177.00 |
| GROSS DEPTH (IN) |
30.50 |
| GROSS HEIGHT (IN) |
37.50 |
| GROSS WIDTH (IN) |
31.00 |
Air Handler Specifications:
| BRAND | MRCOOL® |
| MODEL | MAHM030ETA |
| SERIES | Signature Split Air Handler up to 16 SEER |
| UPC | 810512033027 |
| CONFIGURATION | Multi-Position |
| SEER | Up to 16 |
| CFM | 1000 |
| TONNAGE | 2.5 |
| COOLING CAPACITY (BTU) |
30000 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| MAX FUSE BREAKER (A) |
15 |
| MIN CIRCUIT AMPACITY (A) |
5.1 |
| COLOR |
Gray |
| COLOR FAMILY |
Gray |
| MAX COVERAGE AREA |
1250 |
| REFRIGERANT TYPE |
R-410A |
| NUMBER OF SPEEDS |
5 |
| INVERTER | No |
| LINESET INCLUDED |
No |
| LINE SET LENGTH |
15, 25, 35, 50 |
| MAX LINESET LENGTH (FT) |
50 |
| LINESET FITTING TYPE |
Sweat |
| LIQUID LINE SIZE |
3/8 |
| SUCTION LINE SIZE |
3/4 |
| BLOWER MOTOR TYPE |
ECM |
| BLOWER MOTOR HP |
1/2 |
| BLOWER MOTOR SPEEDS |
5 |
| BLOWER MOTOR RPM |
490-1245 |
| FILTER TYPE |
Replacement |
| FILTER SIZE |
15x20 |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| AUXILIARY HEATER SIZES |
10kw, 15kw |
| UL RECOGNIZED |
No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
No |
| ISO CERTIFIED |
No |
| LEED CERTIFIED |
No |
| ENERGY STAR COMPLIANT |
No |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
Registered 10 Year Parts Warranty |
| BASE WARRANTY |
5 Year Parts Warranty |
| REGISTERED PARTS WARRANTY |
Registered 10 Year Parts Warranty |
| BASE PARTS WARRANTY |
5 Year Parts Warranty |
| HAS BATTERIES |
No |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
No |
| NET DEPTH (IN) |
16.50 |
| NET HEIGHT (IN) |
47.00 |
| NET WIDTH (IN) |
18.50 |
| NET WEIGHT (LBS) |
133.00 |
| GROSS DEPTH (IN) |
27.00 |
| GROSS HEIGHT (IN) |
50.50 |
| GROSS WIDTH (IN) |
22.80 |
