Product Description

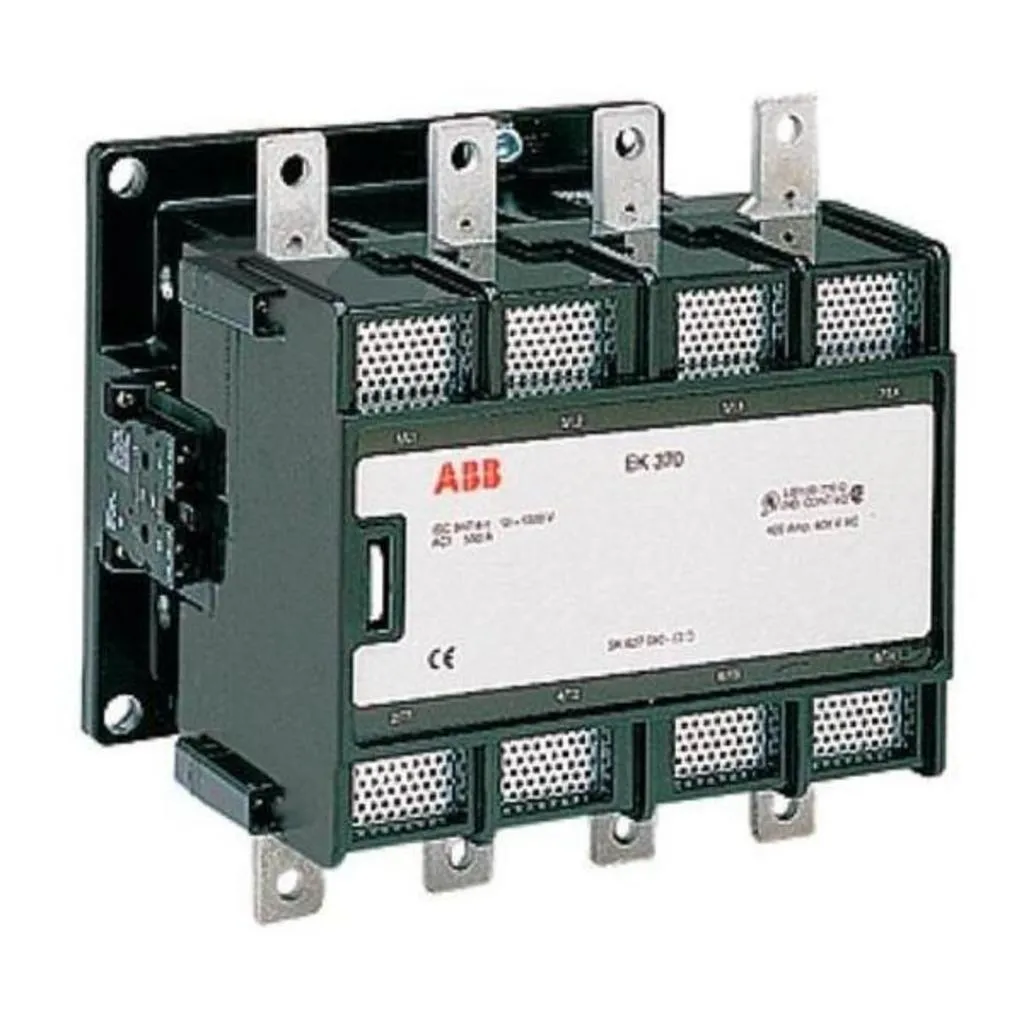

• A 4-pole Contactor suitable for Distribution and Rail way applications AC and DC switching. Operated with control voltage, versions from 24….690 AC, 50/60 Hz and 24-220 V DC

• Number of Main Contacts NO : 4

• Number of Main Contacts NC : 0

• Number of Auxiliary Contacts NO : 1

• Number of Auxiliary Contacts NC : 1

• Rated Operational Voltage : Main Circuit 1000 V

• Conventional Free-air Thermal Current (I_th) : acc. to IEC 60947-4-1, Open Contactors q = 40 °C 800 A

• Rated Breaking Capacity AC-3 acc. to IEC 60947-4-1 : 8 x Ie AC-3

• Rated Making Capacity AC-3 acc. to IEC 60947-4-1: 10 x Ie AC-3

• Short-Circuit Protective Devices : gG Type Fuses 800 A

• Rated Impulse Withstand Voltage (U_imp) : 8 kV

• Mechanical Durability : 5 million

• Maximum Mechanical Switching Frequency : 3600 cycles per hour

• Terminal Type : Screw Terminals

• Product Net Width : 300 mm

• Product Net Depth / Length : 270 mm

• Product Net Height : 225 mm

• Product Net Weight : 17.5 kg
