Product Description

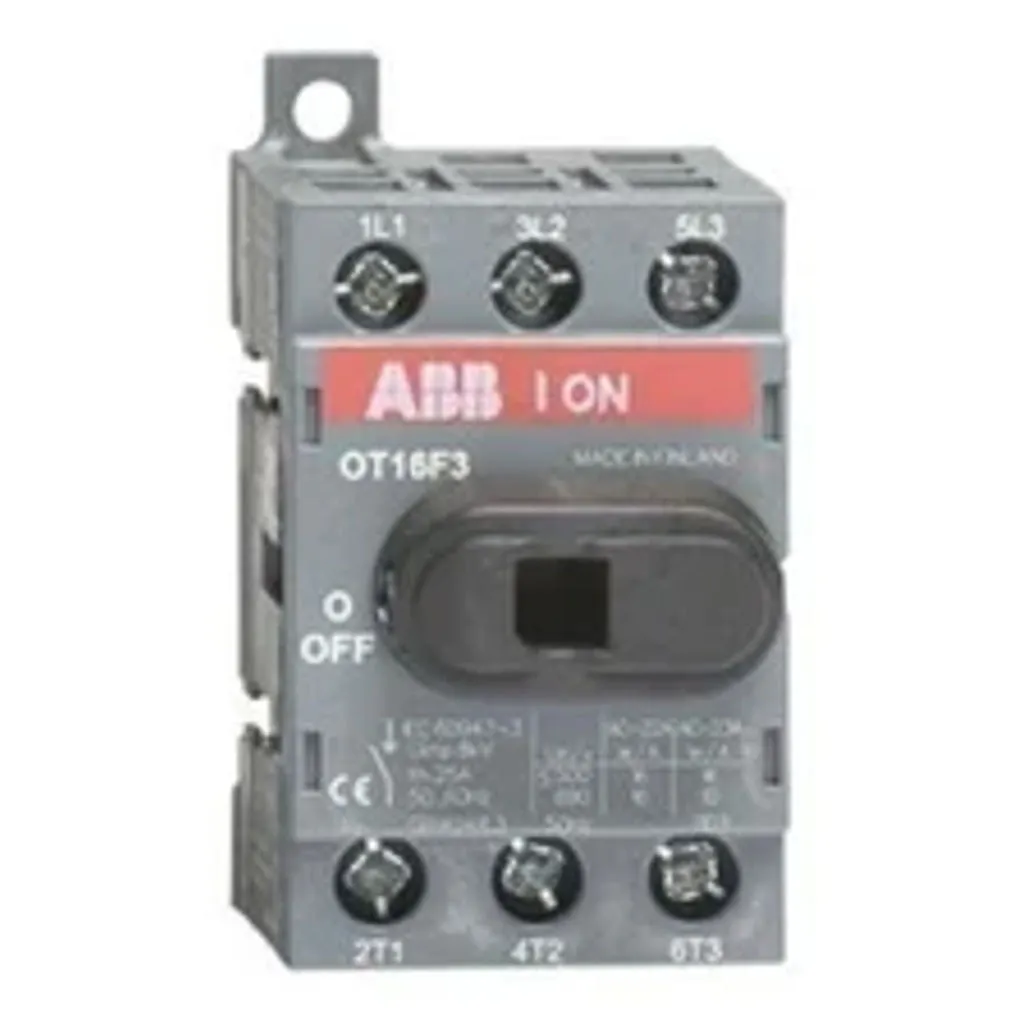

• 3-pole, front operated, base mounted, DIN-rail mountable switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle and shaft are not included

• Number of Poles : 3

• Product Net Width : 68 mm

• Product Net Height : 35 mm

• Product Net Depth / Length : 56 mm

• Product Net Weight : 0.09 kg

• Conventional Free-air Thermal Current (I_th) : q = 40 °C 25 A

• Conventional Thermal Current (I_the) : Fully Enclosed 25 A

• Rated Impulse Withstand Voltage (U_imp) : 8 kV

• Rated Insulation Voltage (U_i) : acc. to IEC/EN 60664-1 750 V

• Rated Operational Voltage : Main Circuit 750 V

• Rated Short-Circuit Making Capacity (I_cm) : (690 V) 0.71 kA

• Rated Short-time Withstand Current (I_cw) : for 1 s 0.5 kA

• Power Loss : at Rated Operating Conditions per Pole 0.3 W

• Pollution Degree : 3

• Handle Type : Knob Handle and shaft not included

• Switches Operating Mechanism : Mechanism on Top of the Switch

• Distance Between Phases : Standard

• Position of Line Terminals : Top In - Bottom Out , Bottom In - Top Out

• Operating Mode : Front operated

• Standards : IEC 60947-3 / UL 508 / CSA C22.2 No. 14

• Special Functions : No

• Mounting Type : Base mounting

• Cable Cross-Section : 0.75 to 10 mm²

• Terminal Type : Screw Terminals

• Tightening Torque : acc. IEC 60947-1 0.8 Nm N·m
