Product Description

• Intelligent PoE

• 8-pin assignment PoE power supply

• Long distance PoE

• PoE watchdog

• BT 90W

• All-giga ports

• Wide working temperature

• System Overview

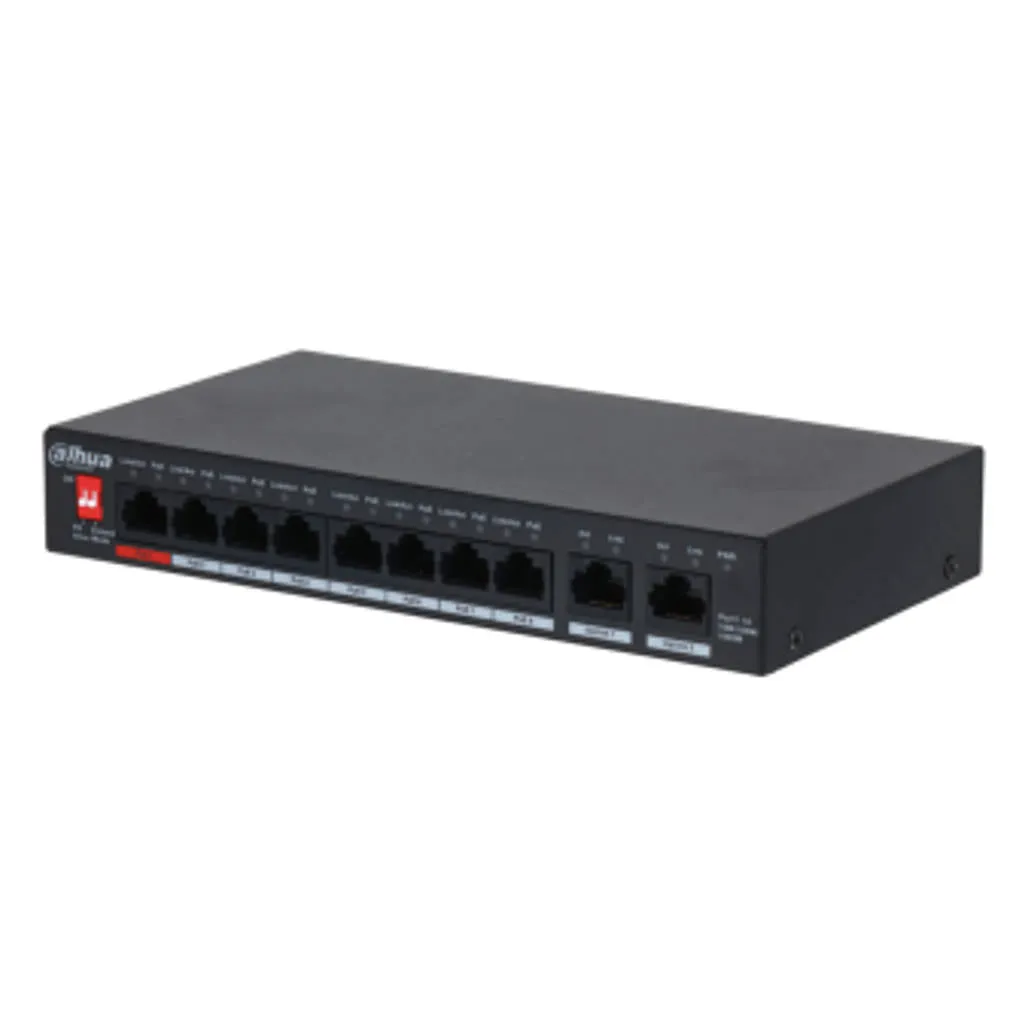

  DH-PFS3010-8GT-96 is an unmanaged Desktop Switch with 8 ×10/100/1000Mbps PoE Ports

• It provides 8 × 10/100/1000 Mbps Ethernet ports and 2 × 10/100/1000 Mbps uplink ports

• The product is equipped with two types of transmission modes (Extend Mode On/Extend Mode Off) The red port supports the IEEE802.3bt and the Hi-PoE standards

• The maximum power consumption is 90 W

• It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the
  cost

• Functions

• Intelligent PoE

• Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power
  consumption

• Supports ultra wide power supplies and is able to adapt to IPC power fluctuations

• BT 90W
  The red ports support IEEE802.3af, IEEE802.3at, IEEE802.3bt and Hi-PoE standards, with a maximum output power consumption rate of 90W per port

• Suitable for powering high-power devices

• PoE Watchdog
  Adopts the innovative PoE Watchdog

• PoE Watchdog can be switched on by dialing or turning on the WEB page switch

• It enables the switch to automatically detect port status and restart failed ports to recoverconnection in case of IPC connection exception

• This enables intelligent operation and maintenance management in its truest sense, effectively
  reducing manual maintenance costs

Product Specification
